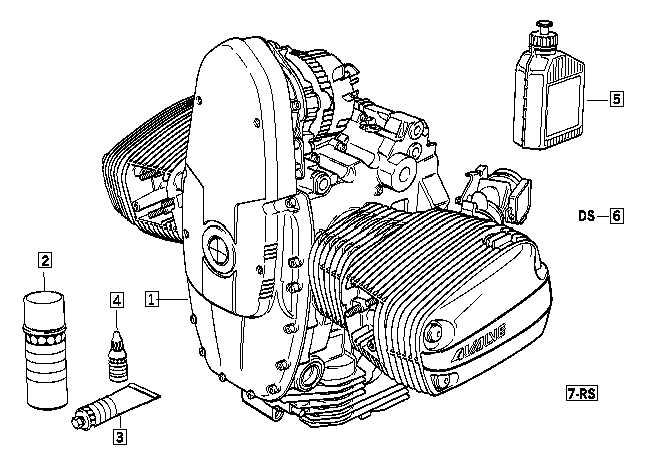

Engine

Description Qty Inst Exp Partnumber AT R TI
1 Engine, silver, 1100cc, 6mm 1 10/95 11 00 1 341 818 E 1
1 Engine, black, 1100cc, 5mm 1 08/96 11 00 1 342 376 1
1 Engine, Silver, 1100cc, 5mm 1 10/95 08/96 11 00 1 342 375 1
2 MR70 Developer, 500ml X 81 22 9 407 495
2 Brake cleaner 600ml spray X 83 11 9 407 848
2 MR68 NF penetrant X 83 11 9 407 855
3 Sealing compound Omni visc 1002, 90g tube X 07 58 1 465 170
4 Gasket Loctite 638 X 07 58 9 056 030
4 Gasket Loctite 243 X 07 58 9 056 031 T
5 Motorcycle oil 20W-50, 1 liter X 81 22 9 407 685
5 Motorcycle oil 5W-50, 1 liter X 81 22 9 407 686
6 Gasket set, engine 1100cc, 6mm 1 10/95 11 00 1 341 901
6 Gasket set, engine 1100cc, 5mm 1 10/95 11 00 1 342 372
7 Repair kit for oil change 1 11 00 1 341 616
7 Repair set, inspection 1 11 00 1 341 617
7 Repair set, inspection, 57kW - 78PS 1 11 00 1 341 814

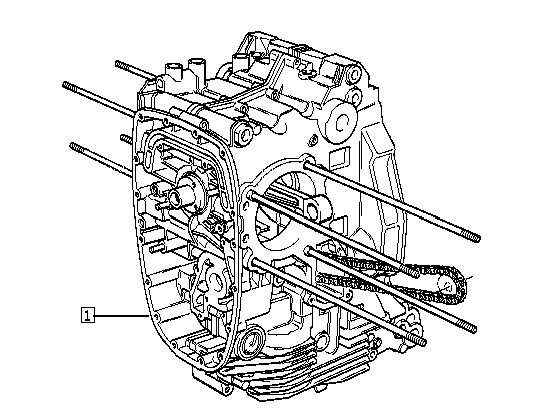

Short engine

Description Qty Inst Exp Partnumber R
1 Short engine, black 1 11 00 1 341 899 1
1 Short engine, silver 1 11 00 1 341 900 1

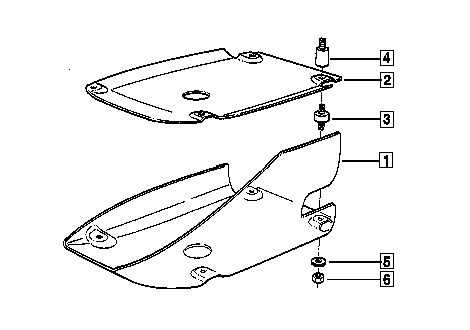

Sump protection plates

Description Qty Inst Exp Partnumber
1 Exterior engine protection part 1 11 11 1 341 636
2 Interior engine protection part 1 11 11 1 341 637
3 Rubber mounting 4 11 11 1 340 864
4 Spacer 1 11 11 1 340 863
5 Flat washer 6,4 4 07 11 9 936 440
6 Self-locking hex nut M6 4 07 12 9 900 191

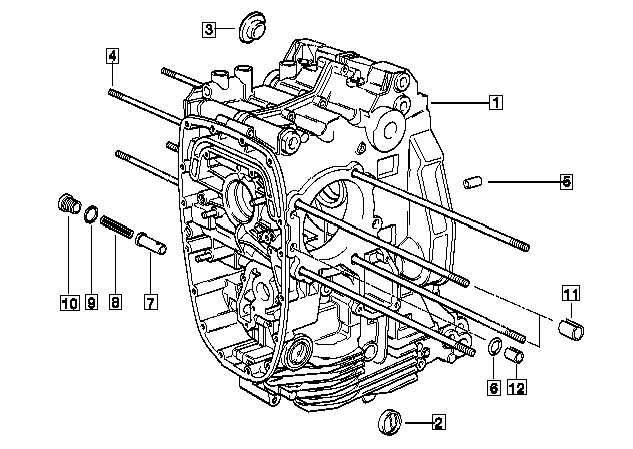

Engine housing

Description Qty Inst Exp Partnumber AT R
1 Black engine housing 1 11 11 1 341 876 1
1 Silver engine housing 1 11 11 1 341 877 1
2 Oil level indicator 1 11 11 1 460 774
3 Plug 1 11 11 1 341 418
4 Stud M10x260,5 8 11 11 1 340 217 AE
4 Stud M10x260,5 8 11 12 1 341 175
5 Dowel 2 11 11 1 340 009
6 O-ring 4 11 11 1 342 242
7 Piston 1 11 41 1 360 780
8 Compression spring 1 11 41 1 460 259
9 Gasket ring G117H18 1 07 11 9 963 242
10 Screw plug 1 11 41 1 460 483
11 Dowel D=16mm 2 11 11 1 340 910
12 Dowel D=10,5mm 4 11 12 1 726 238

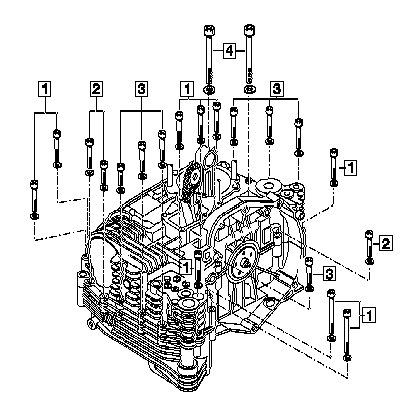

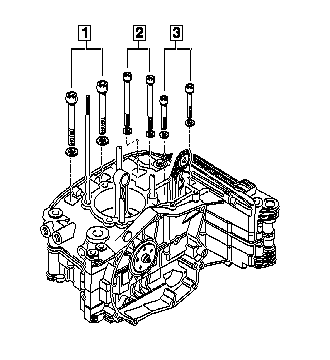

Left side housing bolts

Description Qty Inst Exp Partnumber
1 Fillister head with washer M5x60 9 07 11 9 900 208
2 Fillister head M6x25 3 11 14 1 460 678
3 Fillister head with washer M6x35 7 07 11 9 900 023
4 Fillister head with washer M10x100 2 11 11 1 341 500


Right side housing bolts

Description Qty Inst Exp Partnumber
1 Fillister head with washer M10x100 2 11 11 1 341 500
2 Fillister head with washer M8x80 2 07 11 9 900 231
3 Fillister head with washer M8x35 2 07 11 9 900 232

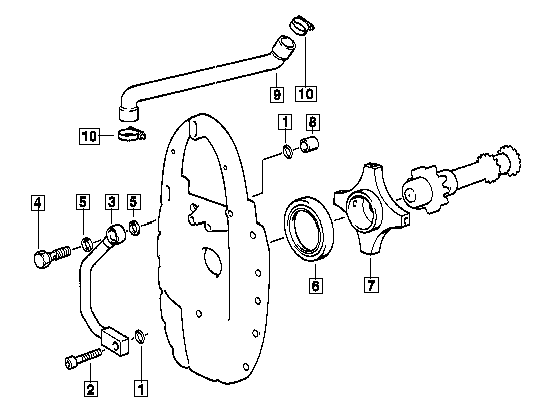

Engine ventilation

Description Qty Inst Exp Partnumber AT R
1 Only applies to rotating ventilation
O-ring
2 11 11 1 342 242
2 Fillister head  M8x25 1 07 11 9 901 024
3 Connecting cable 1 11 11 1 341 854
4 Hollow bolt 1 07 11 9 917 533
5 Sealing ring A14x18 2 07 11 9 963 200
6 Shaft seal 40x62x7 1 11 11 1 341 849
7 Rotor 1 11 31 1 341 835 E 1
8 Dowel D=10,5mm 1 11 12 1 726 238
9 Vent hose 1 11 15 1 341 813
10 Hose clamp D=24mm 2 61 68 1 386 662

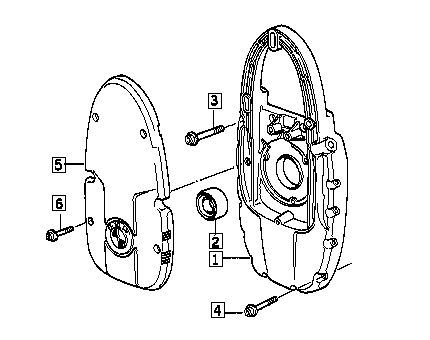

Front cover, alternator support

Description Qty Inst Exp Partnumber AT R
1 Alternator cover support, silver 1 11 11 1 341 890 E 1
1 Alternator cover support, black 1 11 11 1 341 891 AE 1
1 Alternator cover support, black 1 11 11 1 342 293 1
1 Alternator cover support, silver 1 11 11 1 341 917 E 1
2 Shaft seal 30x42x7 1 11 11 1 340 773
3 Fillister head with washer M8x30 2 07 11 9 900 226
4 Fillister head with washer M6x30 X 07 11 9 900 225
5 Cover, black 1 11 14 1 341 562 1
6 Fillister head with washer M5x20 4 07 11 9 900 230

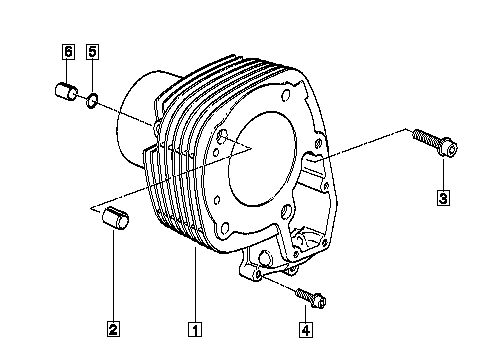

Cylinder

Description Qty Inst Exp Partnumber R
1 Cylinder left A 1 08/97 11 11 1 340 729 1
1 Cylinder right A 1 08/97 11 11 1 340 730 1
1 Cylinder left B 1 08/97 11 11 1 340 731 1
1 Cylinder right B 1 08/97 11 11 1 340 732 1
1 Cylinder left B H=80,65
note: some of these may be mis-named
1 08/97 11 11 1 341 198
1 Cylinder left A H=80,65 1 08/97 11 11 1 341 196
1 Cylinder left B H=80,65 1 08/97 11 11 1 341 197
1 Cylinder left A H=80,65 1 08/97 11 11 1 341 195
2 Dowel D=14,5 4 08/97 11 12 1 341 586
2 Dowel D=12,5 4 08/97 11 12 1 726 241
3 FIllister head with washer M8x55-Z3 1 07 11 9 919 820
3 FIllister head with washer M8x30-Z3 1 07 11 9 920 137
4 FIllister head with washer M6x35 6 07 11 9 900 023
5 O-ring 4 11 11 1 342 242
6 Dowel D=10,5mm 4 11 12 1 726 238

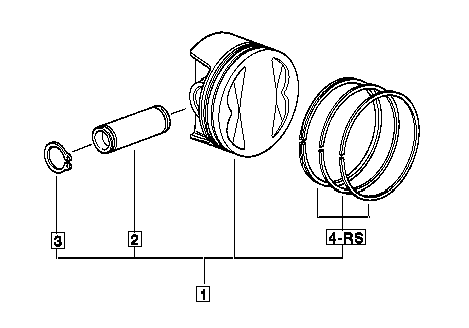

Piston, single components

Description Qty Inst Exp Partnumber AT
1 Piston AB + 580~590g 2 11 25 1 341 807 AE 1
1 Piston AB + 580~590g 2 11 25 1 342 520 A
1 Piston AB + 580~590g 2 11 25 1 342 775 AE
1 Piston AB + 580~590g 2 11 25 1 342 616
1 Piston AB - 570~580g 2 11 25 1 341 808 AE 1
1 Piston AB - 570~580g 2 11 25 1 342 521 A
1 Piston AB - 570~580g 2 11 25 1 342 776 AE
1 Piston AB - 570~580g 2 11 25 1 342 617
2 Gudgeon pin 2 11 25 1 341 365
3 Lock ring A22x1,75 4 11 25 1 335 476
4 Repair kit, piston rings D=99 2 11 25 1 341 489 AE
4 Repair kit, piston rings D=99 2 11 25 1 342 524 AE
4 Repair kit, piston rings D=99 2 11 25 1 342 779

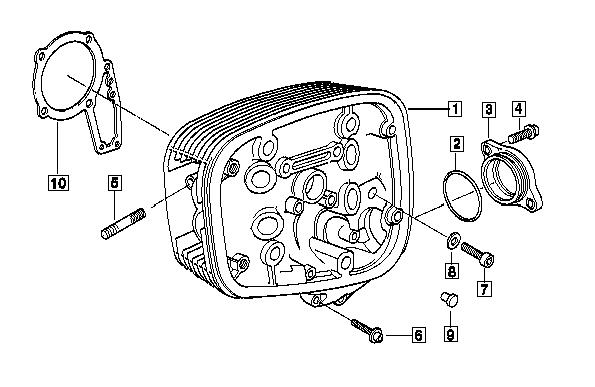

Cylinder head, gasket, camshaft

Description Qty Inst Exp Partnumber R TI
1 Left silver 10-fin cylinder head 1 04/94 11 12 1 341 831 1
1 Right silver 10-fin cylinder head 1 04/94 11 12 1 341 832 1
1 Left silver 9-fin cylinder head 6mm 1 05/94 10/95 11 12 1 341 943 1
1 Right silver 9-fin cylinder head 6mm 1 05/94 10/95 11 12 1 341 944 1
1 Left silver 9-fin cylinder head 5mm 1 10/95 08/97 11 12 1 341 995 1
1 Right silver 9-fin cylinder head 5mm 1 10/95 08/97 11 12 1 341 996 1
1 Right silver 9-fin cylinder head 5mm 1 08/97 11 12 1 342 684
1 Left silver 9-fin cylinder head 5mm 1 08/97 11 12 1 342 683
2 O-ring 2 11 12 1 341 784
3 Cover 2 11 12 1 341 873 T
4 Fillister head with washer M6x16 4 46 51 2 311 713
5 Stud 6 07 12 9 908 133
6 Fillister head with washer M6x30 6 07 11 9 900 225
7 Fillister head M10x70 2 07 11 9 919 998 A
7 Fillister head with washer M10x70 2 11 12 1 342 244
8 Flat washer 2 11 12 1 464 026
10 Cylinder head gasket 2 11 12 1 342 127 A 1 T
10 Cylinder head gasket, 4 components 2 08/97 11 12 1 341 173 1
10 Cylinder head gasket, 3 components 2 08/97 11 12 1 342 194

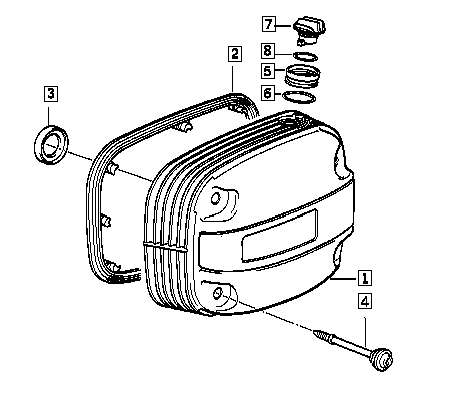

Cyl. head cover, attaching parts

Description Qty Inst Exp Partnumber R
1 Rocker cover left, ZWSL/silver 1 11 12 1 340 903 1
1 Rocker cover right, ZWSL/silver 1 11 12 1 340 904 1
1 Rocker cover left, ESL/silver 1 11 12 1 341 941 1
1 Rocker cover right, ESL/silver 1 11 12 1 341 942 1
1 Rocker cover left, chrome 1 11 12 2 317 427
1 Rocker cover right, chrome 1 11 12 2 317 428
2 Outer gasket 2 11 12 1 341 708 1
3 Inner gasket 2 11 12 1 341 707
4 Bolt, chrome 8 11 12 1 341 117
4 Bolt 8 11 12 1 341 874
5 Filler pipe 1 11 14 1 340 889
6 O-ring 1 11 14 1 340 901
7 Sealing cover 1 11 14 1 340 900
8 O-ring 1 11 14 1 340 902
