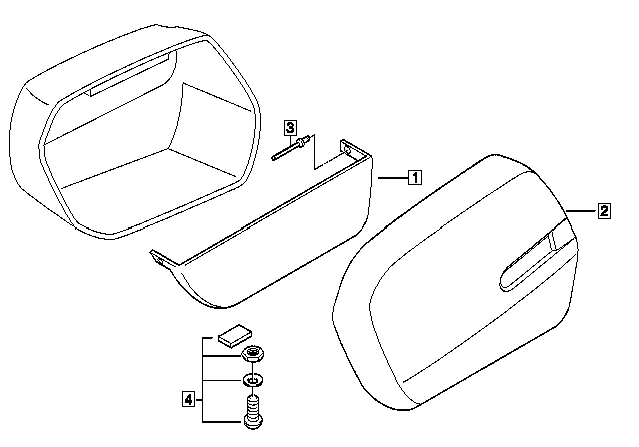

Set, case holder

Description Qty Inst Exp Partnumber R
1 Set case holder 1 71 60 2 316 727 1
2 Left case holder 1 46 54 2 316 421 1
2 Right case holder 1 46 54 2 316 422 1
3 Spacer 2 46 54 2 316 420
4 Fillister head M6x35 Z1 4 07 11 9 900 611
5 Fillister head screw M8x20 2 46 71 2 312 623
6 Flat washer 2 31 42 2 310 341

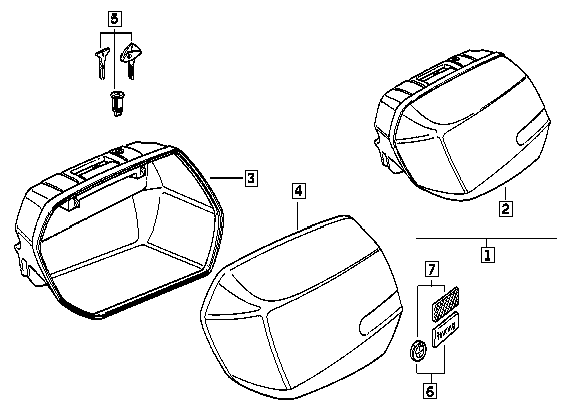

System case

Description Qty Inst Exp Partnumber AT R
1 Set of system suitcase, matte black 1 46 54 2 317 028 AE 1
1 Set of system suitcase, matte black 1 46 54 2 317 621 1
2 Right system case, gloss black 1 46 54 2 317 714 E
2 Left system case, matte black 1 46 54 2 317 031 AE 1
2 Left system case, matte black GID 1 46 54 2 317 623 1
2 Right system case, matte black 1 46 54 2 317 032 AE 1
2 Right system case, matte black GID 1 46 54 2 317 612 1
3 Housing, bottom right 1 46 54 2 316 696 AE 1
3 Housing, bottom right GID 1 46 54 2 317 620 1
3 Housing, bottom left 1 46 54 2 316 697 AE 1
3 Housing, bottom left GID 1 46 54 2 317 625 1
4 Cover left, gloss black 1 46 54 2 316 705 1
4 Cover right, gloss black 1 46 54 2 316 706 E 1
4 Cover left, matte black 1 46 54 2 317 035 E 1
4 Cover right, matte black 1 46 54 2 317 036 E 1
4 Cover left, matte black GID 1 46 54 2 317 615 1
4 Cover right, matte black 1 46 54 2 317 616 1
5 Set of suitcase locks with code 1 51 25 2 307 617 1
5 Set of suitcase locks 1 51 25 2 307 618 1
6 Installing set, side marking light, touring 2 46 54 9 056 968
7 Installing set, side marking light, yellow 2 46 54 9 056 970
7 Only applies to Switzerland
Installing set, side marking light, red
2 46 54 9 056 969


System case, single components

Description Qty Inst Exp Partnumber AT R
1 Multi-purpose box (latch) 2 46 54 2 307 620 1
2 Set of hinge rivets 2 46 54 2 316 700
3 Hinge 4 46 54 2 316 073
4 Pin 2 51 16 1 828 956
5 Holding strap 2 46 54 2 316 580
6 Gasket 2 46 54 2 316 077
7 Rubber tape 8 46 54 2 316 074
8 Hook 4 46 54 2 316 078
9 Axle X 46 54 2 316 076
11 Pad 2 46 54 2 300 017
12 Set of rivets F Multifunctional box 2 46 54 2 316 698 E


City covers

Description Qty Inst Exp Partnumber R
1 Left storing partition insert 1 46 54 2 316 913
1 Right storing partition insert 1 46 54 2 316 914
2 Left city system case lid, black 1 46 54 2 337 019 1
2 Right city system case lid, black 1 46 54 2 337 020 1
4 Bolts F city system case lid 2 46 54 2 337 018


Inner bag

Description Qty Inst Exp Partnumber R
1 Box left, yellow 1 71 60 2 340 211 1
1 Box right, silver 1 71 60 2 341 122 1
1 Box left, silver 1 71 60 2 341 142 1
1 Box right, yellow 1 72 60 2 319 900 1


Scuff protectors

Description Qty Inst Exp Partnumber R
1 Installing set, only in conjunction with system case 1 46 54 2 340 322 1
2 Left impact protection 1 71 60 2 340 323
2 Right impact protection 1 71 60 2 340 324
3 Left impact protection 1 71 60 2 340 325
3 Right impact protection 1 71 60 2 340 326


Top case

Description Qty Inst Exp Partnumber R TI
1 Top case, 35liter 1 46 54 2 316 287 1
2 Cover, black 1 46 54 2 316 288
3 Bottom part 1 46 54 2 315 613 1
4 Hinge 2 46 54 2 303 965
5 Hinge 2 46 54 2 303 868
6 Dowel pin 2 46 54 2 316 313
7 Hinge plate 6 46 54 2 316 318
8 Countersunk head screw M5x16 4 07 11 9 910 348
9 Countersunk head screw M6x16 4 07 11 9 910 350
10 Gasket 1 46 54 2 316 314
11 Badge 1 46 54 2 300 045
12 Label 1 46 54 2 315 908
13 Label "Vehicle capacity charge" 1 71 21 2 312 802
14 Pin 2 46 54 2 316 317
15 Circlip 3,2 2 07 11 9 932 815
16 Distance rubber 1 46 54 2 316 457 T
17 Stopper 1 46 54 2 316 315
18 Holding strap 2 46 54 2 300 441
19 Pin 2 51 16 1 828 956
20 Bump stop 2 46 54 2 316 319
21 Handle 1 46 54 2 315 616
22 Lock 1 51 25 1 455 109


Top case bag

Description Qty Inst Exp Partnumber R
1 Bag, 35 liter silver 1 71 60 2 341 143 1
1 Bag, 35 liter yellow 1 72 60 2 319 129 1


Top case bracket

Description Qty Inst Exp Partnumber AT R
1 Installation set top case bracket 1 46 54 2 316 645 1
2 Top case carrier 1 46 54 2 316 673 1
3 Clamp plate 1 46 54 2 316 626
4 Fillister head, M6x30 4 46 63 2 322 361 EA
4 Fillister head, M6x30-8.8-ZNS 4 07 11 9 900 847
5 Fillister head, M6x60 2 61 12 2 322 496
6 Protection cap, black 6 46 54 2 315 618
7 Strap modification set
only in conjunction with
1 46 54 2 316 674
-- Bush 2 46 54 2 316 675
-- Hex bolt, M6x30-Z3 2 07 11 9 913 980
