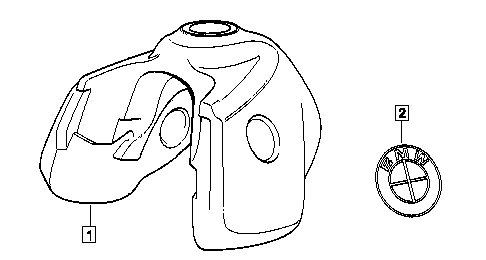

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Prime coated sheet-steel fuel tank only in conjunction with: |
1 | 16 11 2 324 870 | 1 | ||
| -- | Support F left sheet-steel fuel tank | 1 | 46 63 2 324 873 | |||
| -- | Support F right sheet-steel fuel tank | 1 | 46 63 2 324 874 | |||
| 1 | Prime coated sheet-steel fuel tank | 1 | 11/95 | 16 11 2 324 870 | 1 | |
| 2 | Badge | 2 | 16 11 2 325 183 |

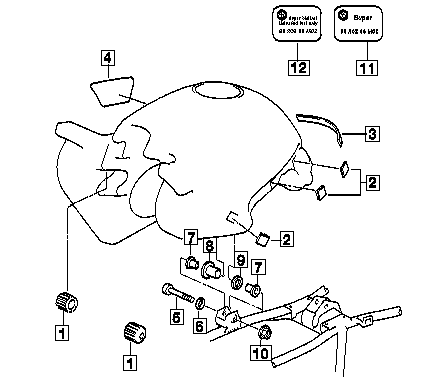

| Description | Qty | Inst | Exp | Partnumber | ||
| 1 | Bump stop | 1 | 16 11 2 323 615 | |||
| 3 | Sealing 258mm | 1 | 16 11 2 324 342 | |||
| 3 | Sealing 290mm | 1 | 16 11 2 324 872 | |||
| 4 | Foil | 1 | 17 11 1 464 251 | |||
| 5 | Fillister head M8x45 | 1 | 07 11 9 901 033 | |||
| 6 | Flat washer A8,4 | 1 | 07 11 9 931 019 | |||
| 7 | Sleeve | 2 | 13 90 1 716 097 | |||
| 8 | Rubber mounting | 1 | 16 11 2 313 045 | |||
| 9 | Rubber washer | 1 | 16 11 2 313 079 | |||
| 10 | Nut M8 | 1 | 18 21 1 464 095 | |||
| 11 | Label "Premium fuel" | 1 | 71 21 1 341 613 | |||
| 12 | Label "Premium fuel unleaded" Deutsch/Engl. | 1 | 71 21 1 341 612 |

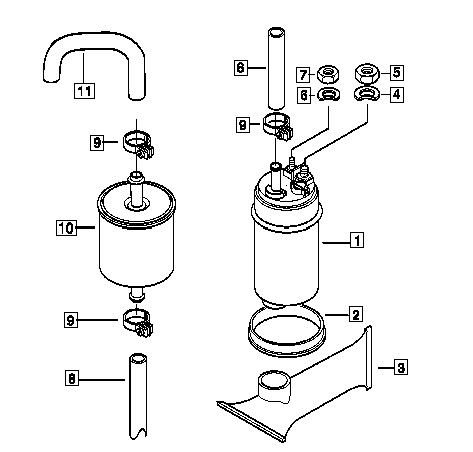

| Description | Qty | Inst | Exp | Partnumber | AT | R | |
| 1 | Fuel pump | 1 | 16 14 1 341 231 | 1 | |||
| 1 | Only applies to authorities Suppressed Fuel pump |
1 | 16 14 1 464 730 | ||||
| 2 | Vibration damper | 1 | 16 14 1 341 232 | ||||
| 3 | Strainer | 1 | 16 14 1 341 233 | 1 | |||
| 4 | Spring washer B5 | 1 | 07 11 9 933 060 | ||||
| 5 | Hex nut M5 | 1 | 07 11 9 922 038 | ||||
| 6 | Spring washer B4 | 1 | 07 11 9 933 034 | ||||
| 7 | Hex nut M4 | 1 | 07 11 9 922 028 | ||||
| 8 | Hose 340mm | 1 | 13 31 1 460 870 | ||||
| 9 | Hose clamp D=13 | 6 | 13 31 1 460 928 | ||||
| 10 | Fuel filter | 1 | 13 32 1 461 265 | 1 | |||
| 11 | Hose | 1 | 16 14 1 341 235 | AE | |||
| 12 | Hose | 1 | 16 14 2 325 808 |

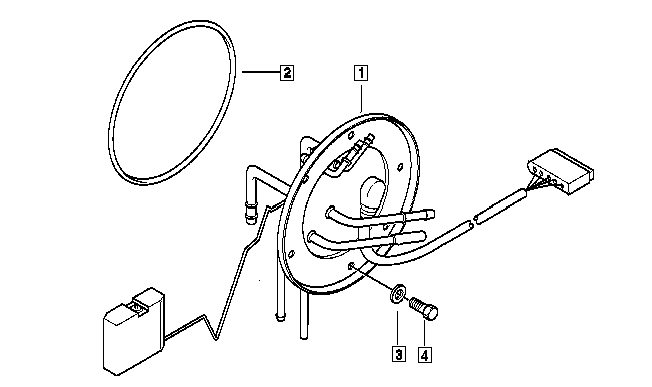

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Petrol gauge | 1 | 16 14 1 341 922 | 1 | ||
| 2 | O-ring | 1 | 16 14 1 341 008 | |||
| 3 | Wave washer B5 | 6 | 07 11 9 932 098 | |||
| 4 | Fillister head with washer M5x12 | 6 | 10/95 | 07 11 9 919 905 | ||
| 4 | Self-locking hex nut M5 | 6 | 10/95 | 07 11 9 915 703 |

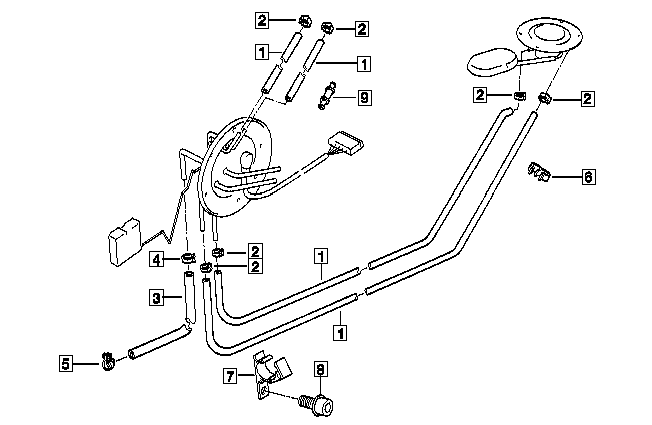

| Description | Qty | Inst | Exp | Partnumber | AT | ||
| 1 | Fuel hose, 5x8 | X | 16 11 1 342 049 | ||||
| 1 | Fuel hose, white only in conjunction with |
X | 16 11 1 342 050 | ||||
| -- | Hose clamp, 55-80 | 6 | 16 11 2 313 574 | ||||
| 2 | Hose clamp 55/75 | 6 | 16 11 1 341 962 | ||||
| 2 | Hose clamp 55-80 | 6 | 16 11 2 313 574 | ||||
| 3 | Fuel hose, 8x13mm | X | 13 31 1 722 262 | AE | |||
| 3 | Fuel hose, 8x13mm | X | 16 12 1 180 409 | ||||
| 4 | Hose clamp 13,1 - 15,5 | 2 | 16 12 1 176 918 | ||||
| 5 | Hose clamp D-12,5 | 2 | 17 12 1 461 500 | ||||
| 6 | Cable holder | 2 | 12 42 1 284 411 | ||||
| 9 | Connection piece | 1 | 61 66 1 382 908 |

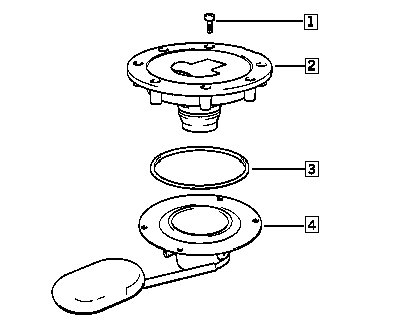

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Torx bolt | 6 | 07 12 9 900 395 | |||
| 2 | Filler cap | 1 | 16 11 2 324 336 | 1 | ||
| 3 | O-ring | 1 | 07 11 9 900 019 | |||
| 4 | Base | 1 | 16 11 2 313 583 | |||
| 4 | Base Cat/SHED | 1 | 16 11 2 313 731 |

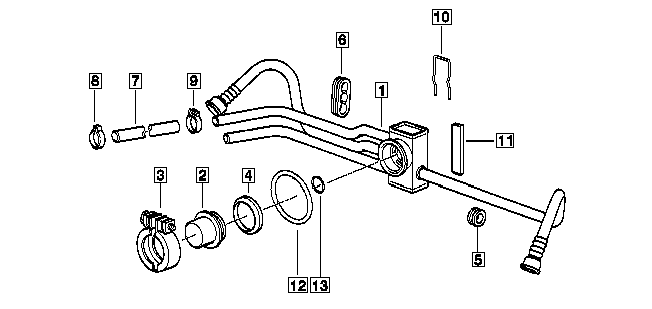

| Description | Qty | Inst | Exp | Partnumber | AT | R | |
| 1 | Fuel distributor | 1 | 13 53 1 341 076 | 1 | |||
| 1 | Fuel distributor | 1 | 13 53 1 341 539 | E | |||
| 2 | Pressure regulator 3,0 bar | 1 | 13 53 1 341 351 | 1 | |||
| 2 | Pressure regulator 3,0 bar | 1 | 13 53 1 465 153 | 1 | |||
| 5 | Left rubber socket | 1 | 13 53 1 341 283 | ||||
| 6 | Right rubber socket | 1 | 13 53 1 341 284 | ||||
| 7 | Fuel hose 8x13mm | X | 13 31 1 722 262 | AE | |||
| 7 | Fuel hose 8x13mm | X | 16 12 1 180 409 | ||||
| 8 | Hose clamp 13,1~15,3 | 2 | 16 12 1 176 918 | ||||
| 9 | Hose clamp D=12,5 | 2 | 17 12 1 461 500 | ||||
| 10 | Clamping spring | 1 | 13 53 1 341 694 | ||||
| 11 | Gasket 60x15x4mm | 1 | 62 21 1 459 439 |
| Description | Qty | Inst | Exp | Partnumber | ||

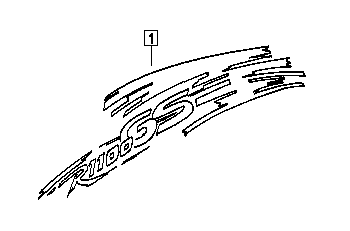

| 1 | Left fuel tank sticker, silver/yellow | 1 | 9/95 | 16 11 2 324 247 | ||
| 1 | Rightfuel tank sticker, silver/yellow | 1 | 9/95 | 16 11 2 324 248 | ||
| 1 | Left fuel tank sticker, KD-Aktion sil/yel | 1 | 9/95 | 16 11 2 325 195 | ||
| 1 | Right fuel tank sticker, KD-Aktion sil/yel | 1 | 9/95 | 16 11 2 325 196 | ||
| 1 | Left fuel tank sticker, black | 1 | 9/95 | 8/97 | 16 11 2 325 001 | |
| 1 | Right fuel tank sticker, black | 1 | 9/95 | 8/97 | 16 11 2 325 002 | |
| 1 | Left fuel tank sticker, red | 1 | 9/95 | 8/97 | 16 11 2 325 049 | |
| 1 | Right fuel tank sticker, red | 1 | 9/95 | 8/97 | 16 11 2 325 050 | |
| 1 | Abziehbild Kraftstofftank, red/silver | 2 | 8/97 | 51 14 2 325 833 | ||
| 1 | Abziehbild Kraftstofftank, black/silver | 2 | 8/97 | 51 14 2 325 835 | ||
| 1 | Special model 75 year BMW motorcycle Abziehbild Kraftstofftank, black/silver/white/red |
2 | 51 14 2 325 927 |

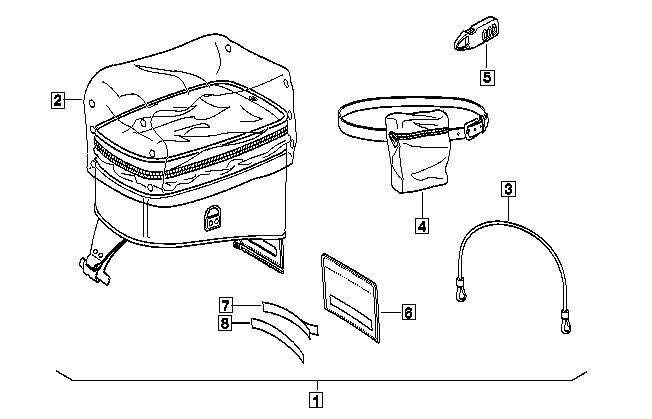

| Description | Qty | Inst | Exp | Partnumber | R | TI | |
| 1 | Tankbag for plastic tank, yellow | 1 | 71 60 2 319 902 | 1 | T | ||
| 1 | Tankbag for steel tank, silver | 1 | 71 60 2 317 546 | 1 | T | ||
| 2 | Cover | 1 | 71 60 2 340 350 | ||||
| 3 | Tension strap | 1 | 71 60 2 340 420 | ||||
| 4 | Bag | 1 | 71 60 2 340 348 | ||||
| 5 | Lock | 1 | 71 60 2 340 349 | ||||
| 6 | Intermediate piece, plastic tank | 1 | 71 60 2 340 546 | ||||
| 6 | Intermediate piece, steel tank | 1 | 71 60 2 317 549 | ||||
| 7 | Klet band, plastic tank,185x15 | 1 | 72 60 2 340 210 | ||||
| 7 | Klet band, steel tank | 1 | 71 60 2 317 550 | ||||
| 8 | Sealing (only for plastic tank) | 1 | 16 11 2 340 183 |
