Pictures from 12/19/2011


2002 Kawasaki KL 250 Super Sherpa

2002 Kawasaki Sherpa

This is my 3rd Kawasaki motorcycle. I bought this one used 3/18/2005 with 2444 miles on the odometer.

Odo



It is a four stroke, DOHC, four valve, one cylinder, air-cooled, 6-geared, dual-sport bike. This bike sits about 3 inches shorter than my old '90 Kawasaki KLR250.

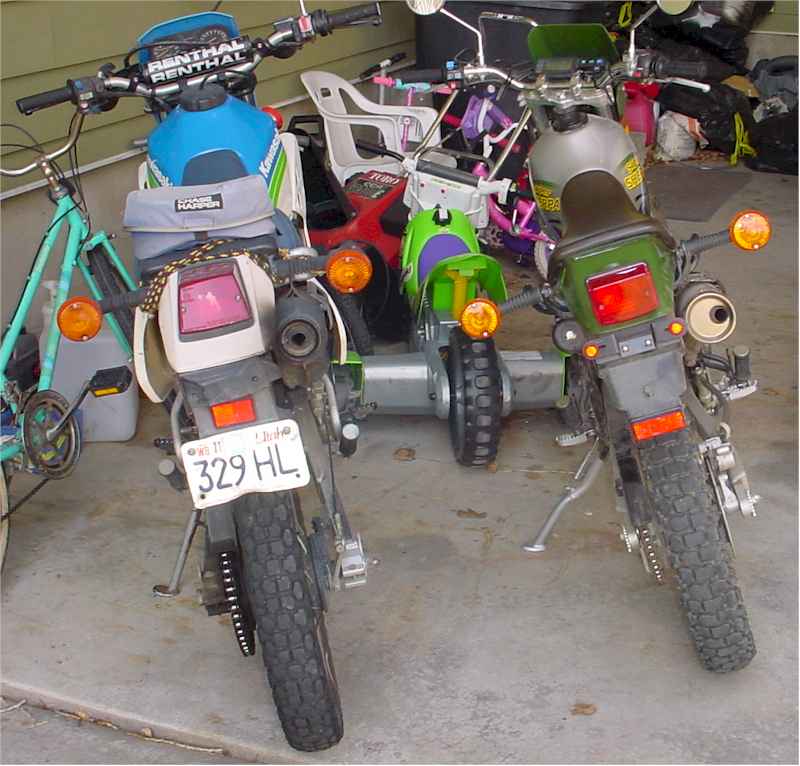

Sherpa vs KLR



This 250 has plenty of power for the highway with a 210 pounder on it!

Milage varies widely depending on how far I fill the tank up.
I have gotten 60 - 72 MPG.
63 MPG seems about average over 4 tanks.



Trip Photos

Trip Photos



Maintenance Log



My friend's new 2006 Suzuki DRZ-400



Specifications:


Model : KL250-G4 Super Sherpa

Engine Type : 4-stroke, air-cooled Single cylinder

Displacement : 249 cc.

Bore x Stroke  : 72 x 61.2 mm.

Compression Ratio : 9.3:1

Valve System : DOHC, 4 valves

Carburetion : Mikuni BST34

Ignition : Electronic

Starting : Electric

Transmission : 6-speed with Positive Neutral Finder

Frame type : Semi-double cradle, high-tensile steel

Rake / Trail : 28 degrees / 4.2 inches

Wheelbase : 54.1 inches

Suspension, Front : 36 mm. telescopic fork

Suspension, Rear : Bottom-Link Uni-Trak with adjustable preload and 20-way rebound damping

Tire Front : 2.75-21

Tire Rear : 4.10-18

Brakes, Front : Single disc with two-piston caliper

Brakes, Rear : Disc with single-piston caliper

Seat Height : 32.7 inches

Fuel Capacity : 2.4 gallons

Dry Weight : 249 pounds

Color : Olive Green /Galaxy Silver



New Battery 3/2011

New front tire 3/2011

New Chain 3/2011

New spark plug 5/2011

New rear brakes 3/2010





Pics from 10/27/2011:

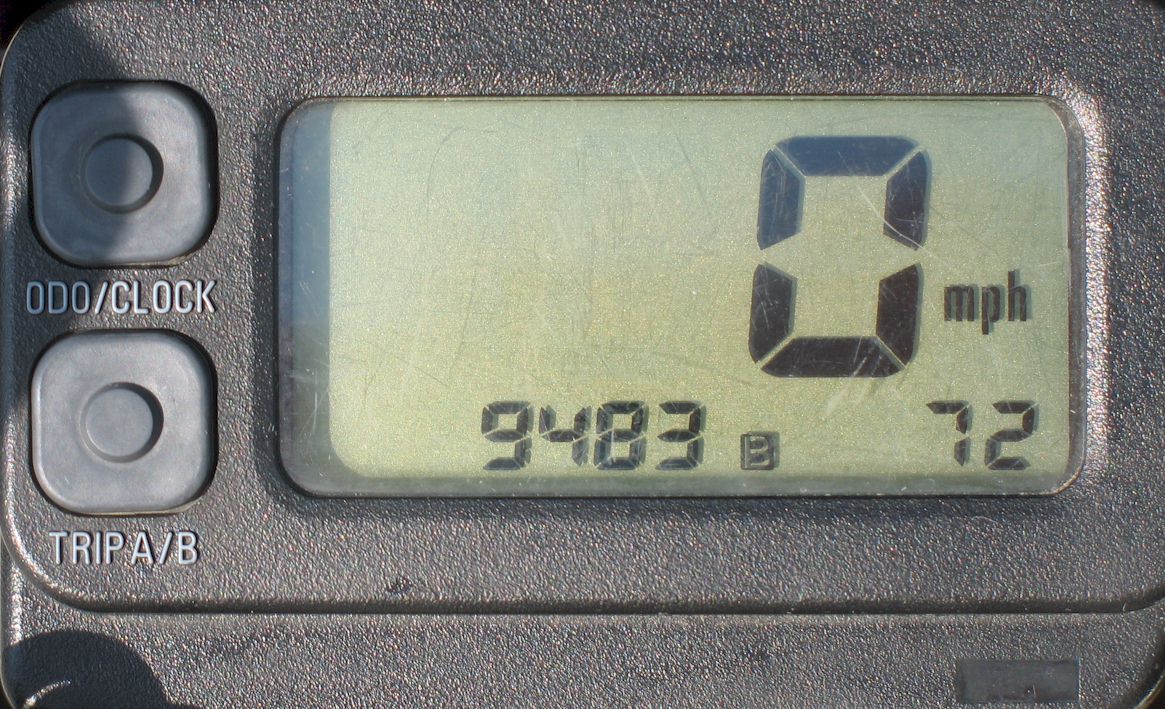

9,483 miles on odo:

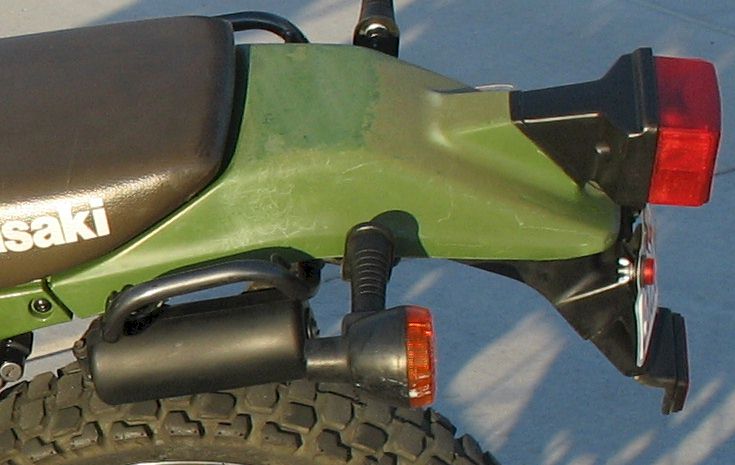

Scratches on fender:
