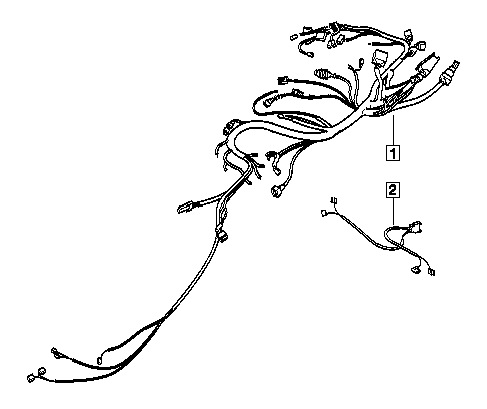

Wiring harness

Description Qty Inst Exp Partnumber R
1 Chassis wiring harness 1 61 11 2 306 486 1
1 Chassis wiring harness, ABS 1 61 11 2 306 487 1
2 Front turn signal wiring 1 61 11 2 306 437


Electrical/relay box and parts

Description Qty Inst Exp Partnumber R
1 Fuse box cover 1 61 13 2 306 367
2 Fuse box 1 61 13 2 306 380 1
3 Wiring box 1 61 13 2 306 222
4 Gasket 1230mm 1 65 61 2 300 307
5 Bracket left 1 61 13 2 306 313
5 Bracket right. 1 61 13 2 306 314
6 Cage nut M6 2 07 12 9 926 512
7 Adapter 1 61 13 2 306 213
8 Fillister head self-tapping screw ST3,5x19-Z1 4 07 11 9 907 802
9 Mudguard 1 61 13 2 306 277
10 Bush 2 46 63 1 451 275
11 Grommet 2 46 63 1 451 277
12 Base 2 46 63 1 451 278
13 Flat washer 6,4 2 07 11 9 936 440
14 Fillister head M6x25 2 07 11 9 919 625
15 Expanding nut 2 52 53 1 451 393
16 Sheet metal screw 2 07 11 9 907 803

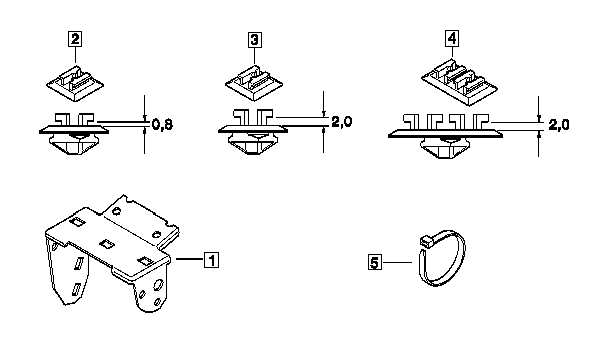

Various cable holders

Description Qty Inst Exp Partnumber AT
1 Bracket 1 07/94 61 13 2 306 424 A
1 Bracket 1 07/94 61 13 2 306 462
2 Plug connection bracket F wiring set 5 61 13 1 378 908
5 Cable strap 200mm X 61 13 1 367 599

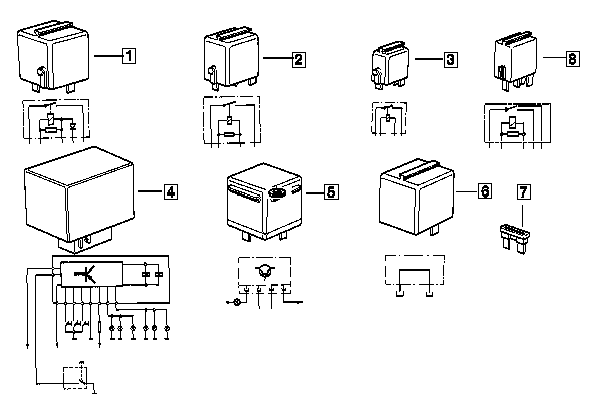

Various relays

Description Qty Inst Exp Partnumber AT R TI
1 Starter motor relay 1 61 36 2 306 888 1
2 Mini relay, make contact, black 4 61 36 1 393 412 1
3 Only applies to ABS
Mini-relay
1 61 36 2 306 352 1
4 Hazard warning relay 1 61 31 2 305 700 1
4 Hazard warning relay 1 61 31 2 306 101 E 1 T
5 Fuel level indicator relay 1 61 35 2 306 365 1
5 Connection plug 30/87A 1 61 36 8 366 551 T
6 only applies to Switzerland version
Connection plug 30, 86, 87, 87A
1 61 13 8 366 624 T
6 only applies to catalyst
Connection plug 30, 87, 87A
1 61 36 8 366 625 T
7 Fuse 15A 6 61 13 1 372 626
7 Fuse A4 2 61 13 8 364 594

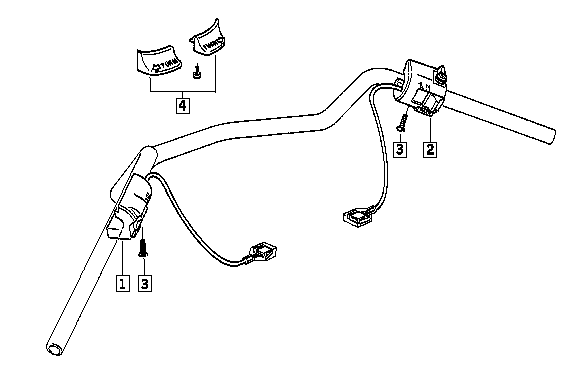

Combination switch at handlebar

Description Qty Inst Exp Partnumber R
1 Left combination switch 1 61 31 2 306 177 1
2 Right combination switch 1 61 31 2 306 178 1
2 Combination switch with continuous lighting (AUS) 1 61 31 2 306 179 1
3 CSK fillister head screw M4x12 2 07 11 9 928 426
4 Repair kit F flasher knob 1 61 31 9 062 462

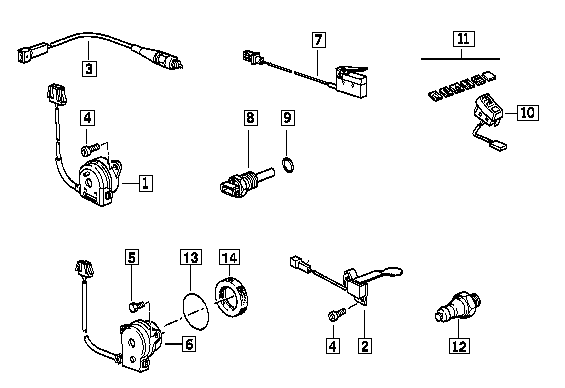

Various switches

Description Qty Inst Exp Partnumber AT R TI
1 Side stand switch
only in conjunction with
1 02/96 61 31 2 306 212 1 T
-- Bracket left 1 02/96 46 52 2 325 344 E T
1 Side stand switch 1 02/96 61 31 2 306 212 1 T
2 Rear stop light switch 1 61 31 1 459 747 1
3 Radio switch 1 61 31 1 459 569 1
4 Fillister head M5x8 2 12 31 2 322 411
5 Hexbolt M4x12 2 07 11 9 913 084
6 Idle switch
only in conjunction with
1 61 31 2 306 202 1
-- Shaft seal 10x22x6 1 23 31 1 340 363
-- O-ring 28x2 1 23 31 1 341 754
7 Front stop light switch 1 61 31 1 459 870 1
8 Temperature sensor 1 12 61 1 341 602 1
9 Sealing ring A14x18 1 07 11 9 963 200
10 Switch, heated handle 1 61 31 1 459 982 1
10 Switch, ABS 1 61 31 2 306 501 1
10 Hazard warning switch 1 61 31 2 306 503 1
11 Symbol hazard warning 1 61 31 1 244 709
11 Symbol heated handle 1 61 31 1 459 360 1
11 Symbol ABS 1 61 31 2 306 502
12 Oil pressure switch
only in conjunction with
1 12 61 1 277 642 1
-- Cable clamp 2 61 31 2 306 377
13 O-ring 28x2 1 23 31 1 341 754
14 Shaft seal 10x22x6 1 23 31 1 340 363

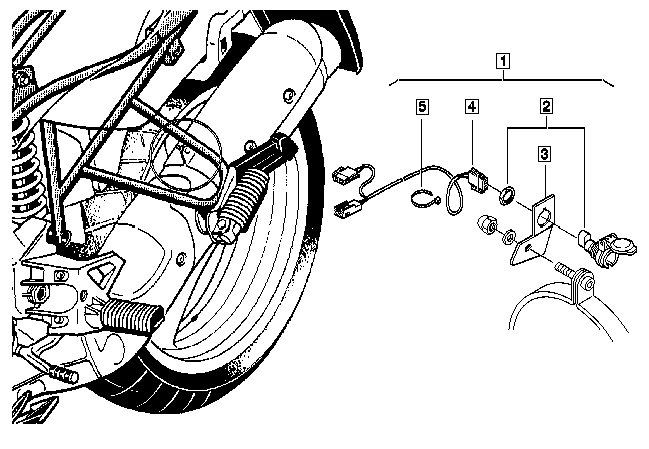

Installation kit, socket

Description Qty Inst Exp Partnumber R
1 Installation kit, socket 1 61 13 2 316 615
2 Plug-in socket 1 61 13 1 391 630 1
3 Bracket 1 61 13 2 316 581
4 Tubing 1 61 13 2 316 114
5 Cable strap 5 61 13 1 244 600

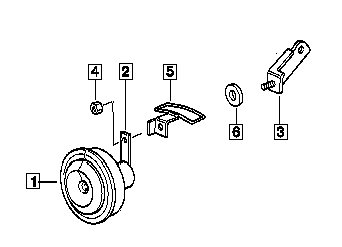

Horn

Description Qty Inst Exp Partnumber AT R
1 Horn 335Hz 1 61 33 1 244 144 E 1
2 Shackle 1 61 31 1 244 497
3 Bracket 1 61 33 2 306 084
4 Self-locking hex nut AM8 1 07 12 9 946 400

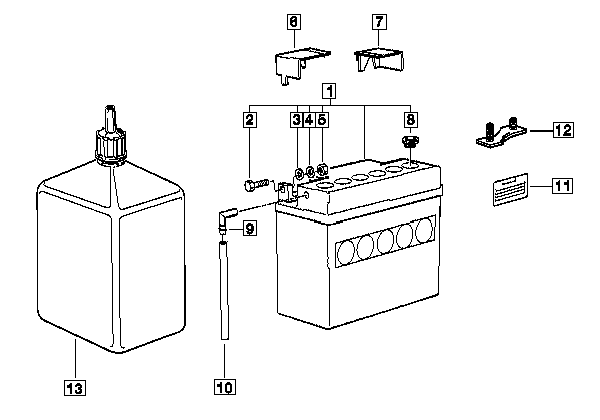

Battery

Description Qty Inst Exp Partnumber AT
1 Empty battery 12V 19AH 1 61 21 2 306 125
2 Hex bolt M6x20 2 61 21 1 459 655
3 Flat washer A6,4 2 61 21 1 459 657
4 Spring washer B6 2 61 21 1 459 658
5 Hex nut M6 2 61 21 1 459 656
6 Cover, positive 1 61 21 2 306 488
8 Blind plug 6 61 21 1 459 106
9 Hose connector 1 61 21 1 459 743
10 Hose 1 61 21 2 306 299
11 Label "Battery" 1 51 14 1 459 227
11 Label "Battery" 30 AH 1 51 14 1 459 229
12 Extension minuspol 1 61 21 2 306 450 AE
12 Extension minuspol 1 61 21 2 306 620
13 Battery acid parcel (6 bottles) 15 ~ 20 AH 1 61 21 9 056 971


Battery tray

Description Qty Inst Exp Partnumber
1 Battery hold down 1 07/96 61 21 2 306 017
1 Battery holder F cable distributor 1 07/96 61 21 2 306 670
2 Rubber mounting 4 61 21 2 305 050
3 Wave washer B6 4 07 11 9 932 099
4 Hex nut M6 4 23 11 2 322 368
5 Tension strap 1 61 21 2 306 106
6 Cable holder 1 61 13 2 306 191
7 Foil 1 61 21 2 306 431
