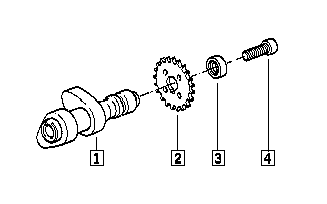

Camshaft

Description Qty Inst Exp Partnumber R
1 Camshaft 2 11 31 1 341 560 1
2 Sprocket 2 11 31 1 340 670 1
3 Flat washer 2 11 31 1 341 469
4 Fillister head M10x1,25x25 2 07 11 9 900 206

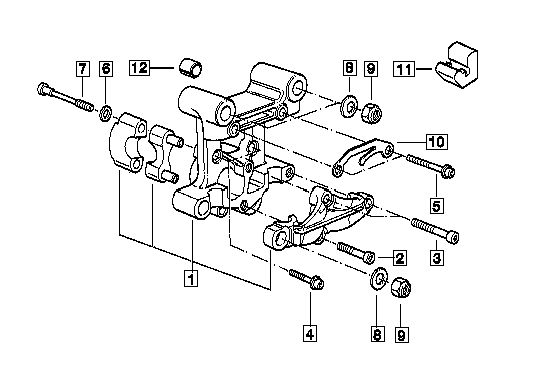

Camshaft supporting bracket

Description Qty Inst Exp Partnumber R
1 Left camshaft supporting bracket 1 02/95 11 33 1 340 251 1
1 Right camshaft supporting bracket 1 02/95 11 33 1 340 252 1
1 Left camshaft supporting bracket 1 02/95 11 33 1 342 121 1
1 Right camshaft supporting bracket 1 02/95 11 33 1 342 122 1
2 Torx bolt 2 11 33 1 340 745
3 Torx bolt 4 11 33 1 340 744
4 Fillister head with washer M6x30 6 07 11 9 920 001
5 Fillister head with washer M6x60 4 07 11 9 920 131
6 Spacer ring 4 11 31 1 460 923
7 Torx bolt 4 11 33 1 340 743
8 Flat washer 8 11 12 1 464 026
9 Hex nut 8 11 12 1 262 302
10 Contact plate 2 11 33 1 341 496
11 Rubber buffer 2 11 33 1 341 619
12 Dowel D=12,5mm 2 11 12 1 726 241

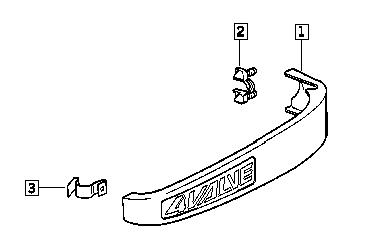

Spark plug cover

Description Qty Inst Exp Partnumber
1 Left spark plug cover 1 11 14 1 341 263
1 Right spark plug cover 1 11 14 1 341 264
2 Rubber buffer 2 11 14 1 341 262
3 Retainer spring 2 11 14 1 341 261

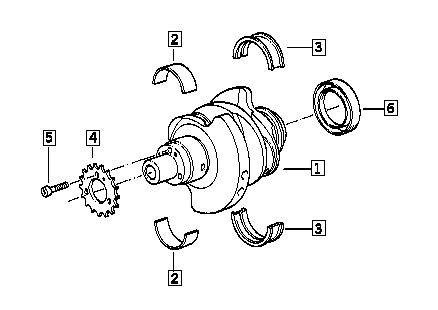

Crankshaft attaching parts

Description Qty Inst Exp Partnumber R
1 Crankshaft without bearing shells 1 11 21 1 340 204 1
2 Bearing shell yellow 2 11 21 1 340 625
2 Bearing shell green 2 11 21 1 340 626
2 Bearing shell yellow +0,25 2 11 21 1 341 573
2 Bearing shell green +0,25 2 11 21 1 341 574
3 Guide bearing shell yellow 60,00mm (0) 2 11 21 1 285 541
3 Guide bearing shell green 60,00mm (0) 2 11 21 1 285 542
3 Guide bearing shell white 60,00mm (0) 2 11 21 1 285 543
3 Guide bearing shell yellow 59,75mm (+0.25) 2 11 21 1 285 544
3 Guide bearing shell green 59,75mm (+0.25) 2 11 21 1 285 545
3 Guide bearing shell white 59,75mm (+0.25) 2 11 21 1 285 546
4 Sprocket 1 11 31 1 340 586 1
5 Fillister head M6x16 3 07 11 9 901 438
6 Shaft seal 65x85x10 1 11 11 1 340 579 1

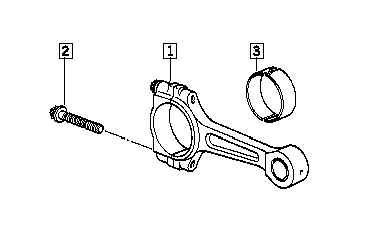

Connecting rod

Description Qty Inst Exp Partnumber R
1 Connecting rod 2 11 24 1 340 695 1
2 Connecting rod bolt 4 11 24 1 341 277
3 Bearing shell 4 11 24 1 341 462
3 Bearing shell +0,25 4 11 24 1 342 153

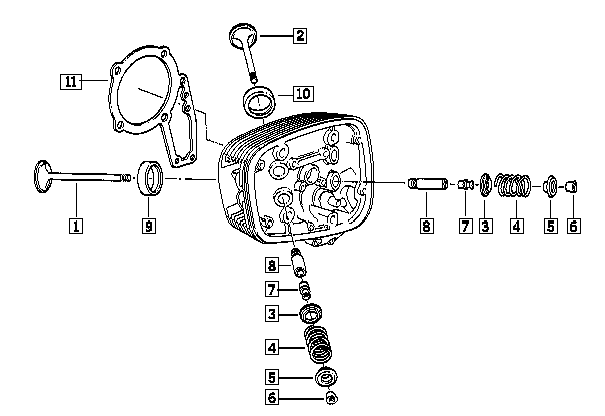

Timing gear/valves

Description Qty Inst Exp Partnumber AT R TI
1 Intake valve D=36/6 4 10/95 11 34 1 340 747
1 Intake valve D=34/5 4 10/95 11 34 1 342 016 1
2 Exhaust valve D=31/6 4 10/95 11 34 1 340 701 1
2 Exhaust valve D=29/5 4 10/95 11 34 1 342 017 1
3 Spring pocket 8 11 34 1 340 919
4 Valve spring 8 11 34 1 341 513 1
5 Upper spring plate D=6 8 10/95 11 34 1 340 918
5 Upper spring plate D=5 8 10/95 11 34 1 340 847 AE
5 Upper spring plate D=5 8 10/95 11 34 1 341 107
6 Valve collet X 10/95 11 34 1 461 405
6 Valve collet D=5 X 10/95 11 34 1 340 846
7 Valve seal ring 8 10/95 11 34 1 461 679
7 Valve seal ring D=5 8 10/95 11 34 1 340 848
8 Valve guide intake D=6mm 4 10/95 11 12 1 340 905
8 Valve guide exhaust D=6mm 4 10/95 11 12 1 340 906
8 Valve guide intake D=5mm 4 10/95 11 12 1 340 838
8 Valve guide exhaust D=5mm 4 10/95 11 12 1 340 843
9 Valve seat ring, inlet 4 10/95 11 12 1 340 574
9 Valve seat ring, inlet 4 10/95 11 12 1 342 450
10 Valve seat ring, exhaust 4 10/95 11 12 1 340 575
10 Valve seat ring, exhaust 4 10/95 11 12 1 342 459
11 Cyl head gasket 2 11 12 1 342 127 A 1 T
11 Cyl head gasket, 4 components 2 08/97 11 12 1 341 173 1
11 Cyl head gasket, 3components 2 08/97 11 12 1 341 194

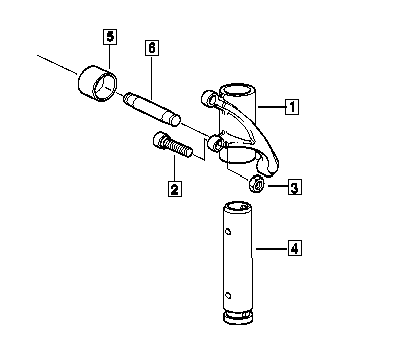

Rocker arm shaft, valve lifter

Description Qty Inst Exp Partnumber R
1 Rocker arm #1 2 11 33 1 340 265 1
1 Rocker arm #2 2 11 33 1 340 266 1
2 Bolt 8 11 33 1 340 633
3 Nut 8 11 33 1 340 636
4 Rocker arm shaft 4 02/95 11 33 1 342 023
4 Rocker arm shaft 4 03/95 11 33 1 342 151
5 Valve lifter D=24 4 11 32 1 340 647
6 Valve pushrod 4 11 32 1 342 428 1

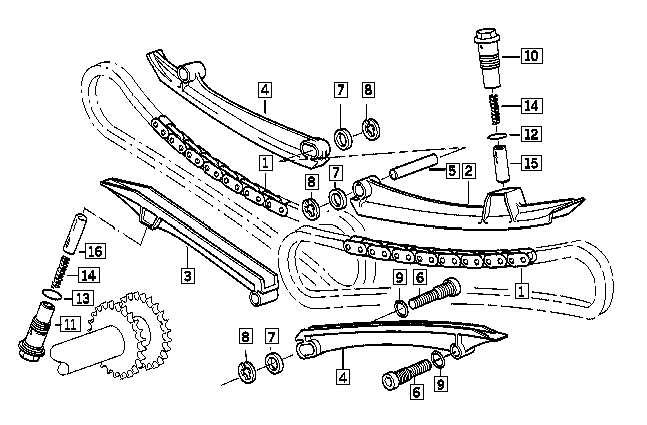

Timing chain and tensioner

Description Qty Inst Exp Partnumber R
1 Timing chain 2 11 31 1 340 169 1
2 Left chain tensioner 1 11 31 1 341 295
3 Right chain tensioner 1 11 31 1 341 296
4 Slide rail 2 11 31 1 341 291
5 Guide pin 1 11 31 1 340 556
6 Bolt 3 11 31 1 340 163
7 Spacer ring 3 11 31 1 460 899
8 Circlip 6,0 3 07 11 9 932 841
9 Sealing ring A10x15-AL 3 07 11 9 900 244
10 Hex bolt M18x1,5x49 1 11 31 1 340 739
10 Cylinder F tensioner, left 1 11 31 1 341 137
11 Hex bolt M18x1,5x35,5 1 11 31 1 340 740
11 Cylinder F tensioner, right 1 11 31 1 341 138
12 Gasket ring A18x22-CU 1 07 11 9 963 308
13 Gasket ring A20x24-CU 1 07 11 9 963 342
14 Spring 2 11 31 1 341 015
15 Piston left 1 11 31 1 340 741
16 Piston right 1 11 31 1 340 742

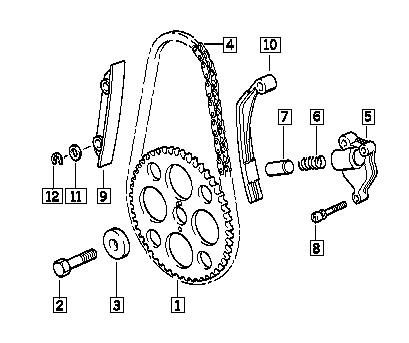

Timing chain/tensioner/slide rail

Description Qty Inst Exp Partnumber R
1 Sprocket 1 11 31 1 340 671 1
2 Hex bolt M10x40 1 07 11 9 900 207
3 Flat washer 1 11 31 1 341 572
4 Timing chain 1 11 31 1 340 168 1
5 Housing 1 11 31 1 340 726
6 Coil spring 1 11 31 1 335 584
7 Piston 1 11 31 1 340 592
8 Fillister head M6x25 3 11 14 1 460 678
9 Guide rail 1 11 31 1 341 293
10 Chain tensioner 1 11 31 1 341 292
11 Spacer ring 3 11 31 1 460 923
12 Circlip 6,0 3 07 11 9 932 841

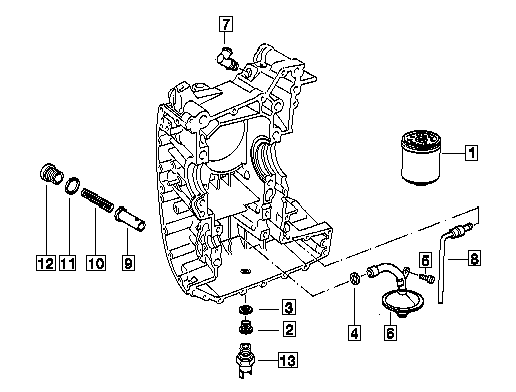

Lubrication system, oil filter

Description Qty Inst Exp Partnumber
1 Oil filter for catalyst 1 11 42 1 460 845
2 Plug M16x1,5 1 07 11 9 919 117
3 Sealing ring A16x20 1 07 11 9 963 252
4 O-ring 1 11 41 1 340 772
5 Fillister head M6x16 1 07 11 9 901 438
6 Oil pump strainer 1 11 41 1 340 762
7 Vent pipe 1 11 11 1 341 276
9 Piston 1 11 41 1 340 780
10 Compression ring 1 11 41 1 460 259
11 Gasket ring G17/H8 1 07 11 9 963 242
12 Screw plug 1 11 41 1 460 483

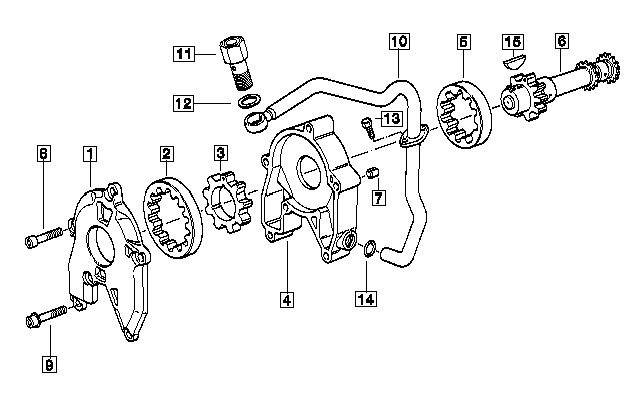

Single parts F, oil pump

Description Qty Inst Exp Partnumber R
1 Oil pump cover 1 11 41 1 340 291 1
2 Exterior rotor, cooling oil 1 11 41 1 340 137
3 Interior rotor, cooling oil 1 11 41 1 340 135 1
4 Oil pump housing 1 11 41 1 340 289 1
5 Exterior rotor, lubricating oil 1 11 41 1 340 136
6 Auxiliary shaft 1 11 31 1 341 855 1
7 Dowel D=8,5mm 2 11 12 1 726 242
8 Fillister head M6x45 4 07 11 9 920 023
9 Fillister head with washer M6x50 2 07 11 9 900 208
10 Oil pipe, cool oil 1 11 51 1 340 950
11 Ventilation valve
see service information
1 11 51 1 342 248
12 Sealing ring A14x18 2 07 11 9 963 200
13 Fillister head M6x16 2 07 11 9 901 438
14 O-ring 1 11 51 1 340 738
15 Woodruff key 3x3,7 1 07 11 9 951 430

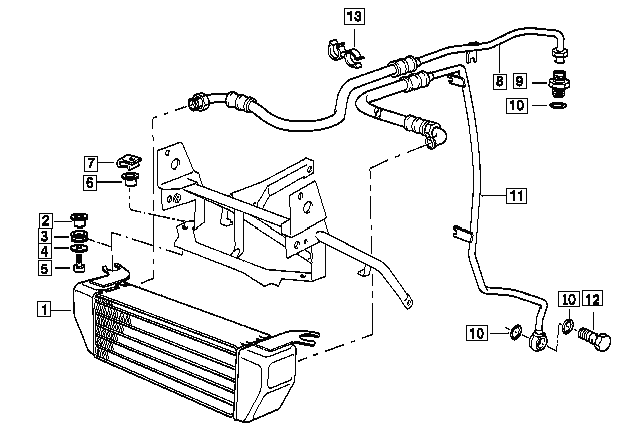

Oil cooler, oil cooling pipe

Description Qty Inst Exp Partnumber R
1 Oil cooler 1 17 21 1 341 979 1
2 Bush 2 46 63 1 451 275
3 Grommet 2 46 63 1 451 277
4 Flat washer 2 46 63 1 451 276
5 Fillister head M6x25 2 11 14 1 460 678
6 Nut holder 2 46 63 1 455 425
7 Cage nut M6 2 07 12 9 926 511
8 Oil pipe inlet 1 17 31 1 341 416
9 Threaded pipe joint 1 07 11 9 964 535
10 Sealing ring A16x20 3 07 11 9 963 252
11 Oil pipe outlet, silver 1 17 22 1 341 871
11 Oil pipe outlet, black 1 17 22 1 341 872
12 Hollow bolt M16x28 1 32 41 1 117 182
13 Hose clamp 1 17 22 1 341 603
