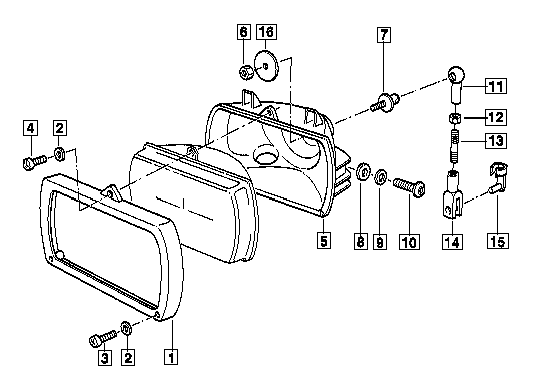

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Frame | 1 | 63 12 2 313 317 | |||
| 2 | Wave washer B5 | 3 | 07 11 9 932 047 | |||
| 3 | Fillister head screw | 2 | 63 12 2 313 510 | |||
| 4 | Fillister head screw | 1 | 63 12 2 313 509 | |||
| 5 | Headlamp housing | 1 | 63 12 2 313 316 | 1 | ||
| 6 | Self-locking hex nut M5 | 1 | 63 14 2 322 408 | |||
| 7 | Ball pin | 1 | 63 12 2 306 491 | |||
| 8 | Rubber washer | 2 | 63 12 1 358 129 | |||
| 9 | Flat washer A8,4 | 2 | 07 11 9 931 019 | |||
| 10 | Fillister head screw M8x25 | 2 | 36 31 1 457 803 | |||
| 11 | Ball joint | 1 | 63 12 2 306 490 | |||
| 12 | Hex nut M5 | 1 | 07 11 9 921 040 | |||
| 13 | Adjusting screw | 1 | 63 12 2 306 465 | |||
| 14 | Forkhead | 1 | 63 12 2 306 464 | |||
| 15 | Pin | 1 | 63 12 2 306 463 | |||
| 16 | Flat washer | 1 | 51 11 8 108 144 |

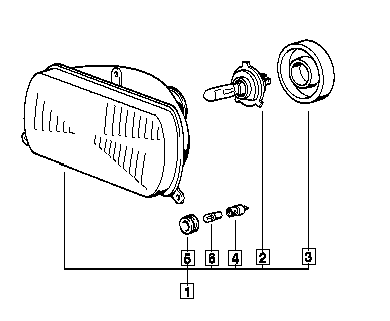

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Headlight insert | 1 | 63 12 2 306 250 | 1 | ||
| 1 | Feft-hand traffic headlight insert (AUS) | 1 | 63 12 2 306 251 | 1 | ||
| 2 | Bulb H4 | 1 | 63 12 1 354 619 | |||
| 3 | Supporting ring | 1 | 63 12 2 306 376 | |||
| 4 | Bulb socket | 1 | 63 12 2 306 298 | |||
| 5 | Rubber grommet | 1 | 63 12 2 306 297 | |||
| 6 | Bulb12V 4W | 1 | 07 50 9 063 576 |

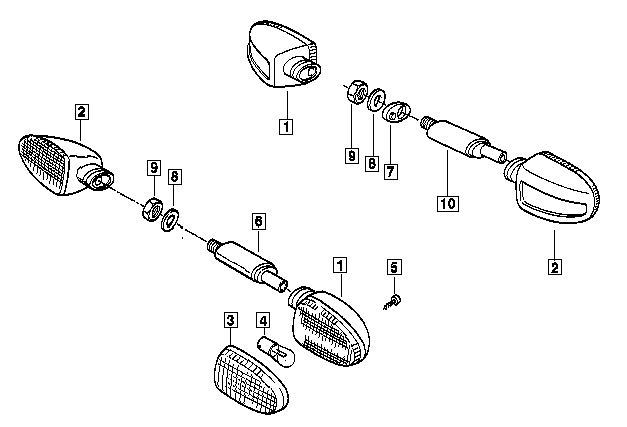

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Turn indicator lamp, black only in conjunction with item 5 |
2 | 63 13 2 306 493 | 1 | ||
| 2 | Turn indicator lamp, black only in conjunction with item 5 |
2 | 63 13 2 306 494 | 1 | ||
| 3 | Lens | 4 | 63 13 2 306 293 | |||
| 4 | Bulb 12V 21W | 4 | 63 13 2 306 150 | |||
| 5 | Bolt 16LG | 4 | 63 11 1 459 898 | |||
| 6 | Turn indicator holder, black | 2 | 63 23 2 306 484 | |||
| 7 | Spacer bushing | 2 | 63 13 2 306 038 | |||
| 8 | Flat washer A13 | 4 | 07 11 9 931 021 | |||
| 9 | Hex nut M12 | 4 | 07 11 9 921 100 | |||
| 10 | Turn indicator holder | 2 | 63 13 2 306 318 |

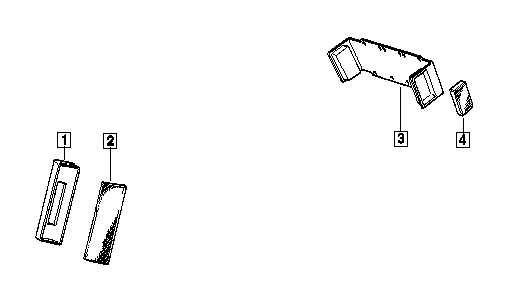

| Description | Qty | Inst | Exp | Partnumber | |
| 1 | Bracket front | 2 | 63 14 2 306 523 | ||
| 2 | Side marker yellow | 2 | 63 14 1 459 035 | ||
| 3 | Bracket rear | 1 | 63 14 2 306 524 | ||
| 4 | Side marker yellow | 2 | 46 54 2 300 134 | ||
| 5 | only applies to Switzerland Side marker red |
2 | 63 14 1 459 995 |

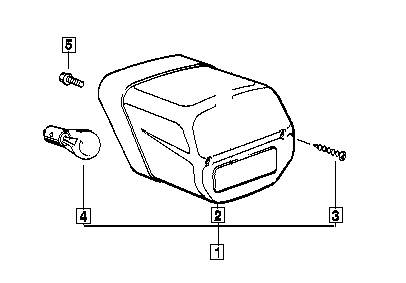

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Rear light | 1 | 63 21 2 306 240 | 1 | ||
| 2 | Lens | 1 | 63 21 2 306 242 | |||
| 3 | Bolt | 2 | 63 21 2 306 243 | |||
| 4 | Bulb 12V 5/21W | 1 | 07 11 9 978 384 | |||
| 5 | Bolt | 2 | 13 71 1 711 087 |
