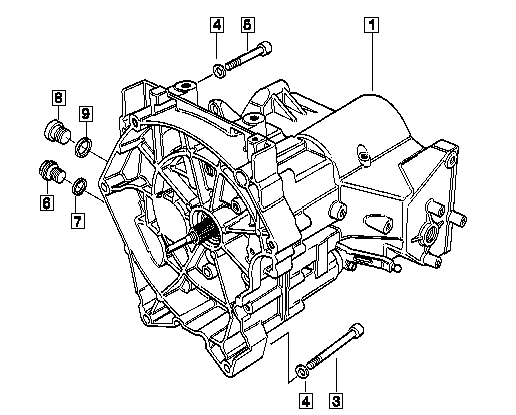

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Black 5-speed transmission M94 | 1 | 23 00 2 332 088 AE | 1 | ||
| 1 | Black 5-speed transmission M97 | 1 | 23 00 2 325 619 | 1 | ||
| 1 | Silver 5-speed transmission M94 | 1 | 23 00 2 345 508 AE | 1 | ||
| 1 | Silver 5-speed transmission M97 | 1 | 23 00 2 325 618 | 1 | ||
| 1 | RMFD silver 5-speed transmission M94 | 1 | 23 00 2 345 509 AE | 1 | ||
| 1 | RMFD silver 5-speed transmission M97 | 1 | 23 00 2 325 620 | 1 | ||
| 1 | RMFD black 5-speed transmission M94 only in conjunction with | 1 | 23 00 2 332 089 | 1 | ||
| -- | Cap | 1 | 23 11 1 451 549 | |||
| 1 | RMFD black 5-speed transmission M97 | 1 | 23 00 2 325 621 | |||
| 2 | Gasket set 5-speed gearbox | 1 | 23 00 1 341 764 | |||
| 3 | Fillister head M8x75 | 2 | 07 11 9 900 199 | |||
| 4 | Flat washer 8,4 | 6 | 07 11 9 931 697 | |||
| 5 | Fillister head M8x55 | 4 | 07 11 9 901 035 | |||
| 6 | Screw plug | 1 | 23 11 1 340 790 E | |||
| 7 | Sealing ring A14x18 | 1 | 07 11 9 963 200 | |||
| 8 | Screw plug M18x1,5 | 1 | 07 11 9 919 143 | |||
| 9 | Sealing ring A18x22 | 1 | 07 11 9 963 300 |

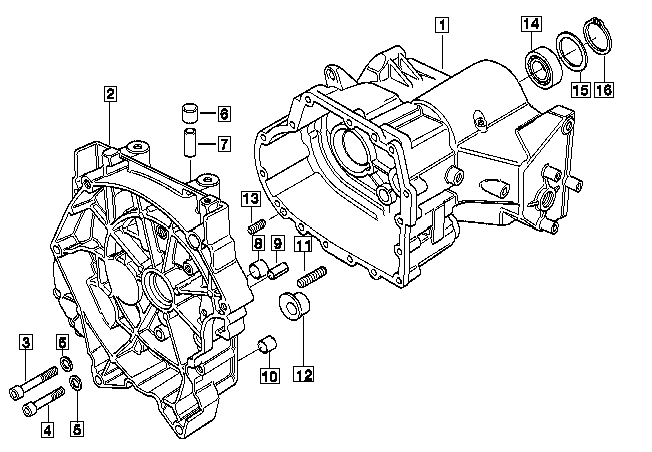

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Silver transmission housing | 1 | 4/96 | 23 00 1 341 298 | 1 | |
| 1 | Transmission housing black | 1 | 4/96 | 23 11 1 340 315 | ||
| 1 | Transmission housing black clean bearing | 1 | 4/96 | 23 00 2 325 218 | 1 | |
| 1 | Transmission housing silver clean bearing | 1 | 4/96 | 23 10 2 325 217 | 1 | |
| 2 | Silver housing cover | 1 | 4/96 | 23 00 1 341 312 | 1 | |
| 2 | Housing cover black | 1 | 4/96 | 23 11 1 340 313 | ||
| 2 | Housing cover silver clean bearing | 1 | 4/96 | 23 00 2 325 220 | 1 | |
| 2 | Housing cover black clean bearing | 1 | 4/96 | 23 00 2 325 221 | 1 | |
| 3 | Fillister head M6x65 | X | 07 11 9 900 060 | |||
| 4 | Fillister head M6x50 | 4 | 07 11 9 919 930 | |||
| 5 | Wave washer B6 | X | 07 11 9 932 099 | |||
| 6 | Cap | 1 | 23 11 1 451 549 | |||
| 7 | Sleeve | 1 | 23 11 1 341 615 | |||
| 8 | Bush | 1 | 23 11 1 451 135 | |||
| 9 | Bush | 1 | 23 11 1 451 013 | |||
| 10 | Bushing for shift rod | 1 | 23 11 1 451 137 | |||
| 11 | Dowel pin 10-S6x40 | 1 | 07 11 9 900 830 | |||
| 12 | Bushing for shift rod | 1 | 23 12 1 340 325 | |||
| 13 | Dowel pin 8-M6x24 | 2 | 07 11 9 942 526 | |||
| 14 | Grooved ball bearing 12x28x8 | 1 | 23 12 1 340 327 | |||
| 15 | Support 20x28x2 | 1 | 23 21 1 341 739 | |||
| 16 | Lock ring 28x1,2 | 1 | 23 21 1 341 738 | |||
| 16 | Lock ring 28x1,3 | 1 | 23 21 1 341 737 | |||
| 16 | Lock ring 28x1,4 | 1 | 23 21 1 341 736 | |||
| 16 | Lock ring 28x1,5 | 1 | 23 21 1 341 735 |

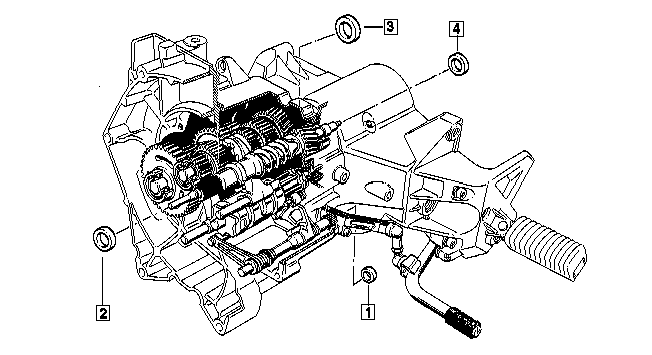

| Description | Qty | Inst | Exp | Partnumber | |
| 1 | Shaft seal 14x22x5 | 1 | 23 12 1 340 322 | ||
| 2 | Shaft seal 22x35x6 | 1 | 23 12 1 340 331 | ||
| 3 | Shaft seal 25x40x6 | 1 | 23 12 1 340 324 | ||
| 4 | Shaft seal 20x35x5 | 1 | 23 12 1 341 740 |

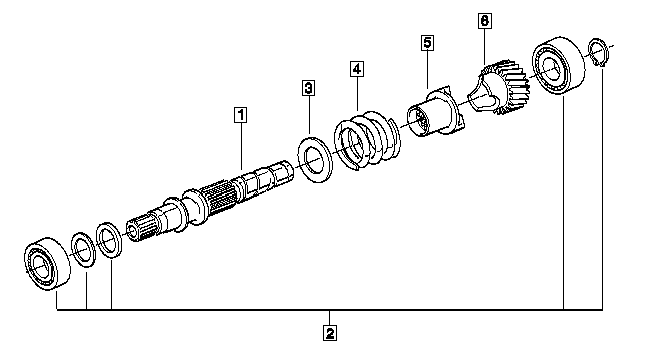

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Drive shaft M93/94 | 1 | 23 21 2 345 512 | |||
| 2 | Repair kit F final drive shaft bearing 25(20)x52x15 | 1 | 23 00 2 325 604 | 1 | ||
| 3 | Washer 28x44x3 | 1 | 23 21 1 340 794 | |||
| 4 | Compression spring | 1 | 23 21 2 331 066 | |||
| 5 | Thrust mounting | 1 | 23 21 1 340 796 | |||
| 6 | Gear wheel M93/Z=22 | 1 | 23 21 1 340 799 | |||
| 6 | Gear wheel M94/Z=20 | 1 | 23 21 2 345 502 |

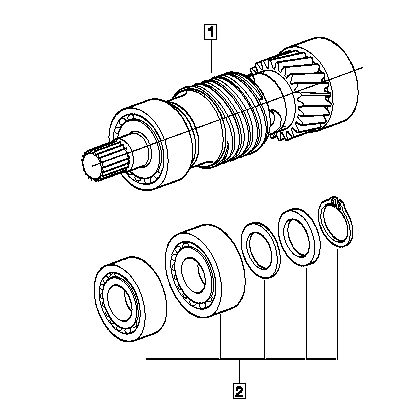

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Drive shaft M97 | 1 | 23 20 2 325 477 | |||
| 2 | Repair kit F final drive shaft bearing 25(20)x52x15 | 1 | 23 00 2 325 604 | 1 |

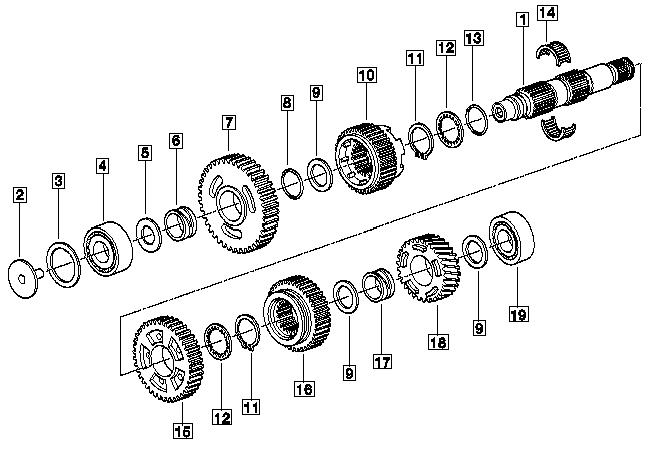

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Output shaft | 1 | 23 21 2 345 514 | 1 | ||
| 2 | Oil guide | 1 | 23 11 1 340 426 | |||
| 3 | Spacer ring 37x47x0,30 | 1 | 23 11 1 451 138 | |||
| 3 | Spacer ring 37x47x0,35 | 1 | 23 11 1 341 431 | |||
| 3 | Spacer ring 37x47x0,40 | 1 | 23 11 1 451 139 | |||
| 3 | Spacer ring 37x47x0,45 | 1 | 23 11 1 341 432 | |||
| 3 | Spacer ring 37x47x0,50 | 1 | 23 11 1 451 140 | |||
| 3 | Spacer ring 37x47x0,55 | 1 | 23 11 1 341 433 | |||
| 4 | Grooved ball bearing 20x47x14 | 1 | 23 00 1 340 494 AE | |||
| 4 | Grooved ball bearing, clean bearing 20x47x14 | 1 | 23 00 2 325 251 | |||
| 5 | Support 20x35x1,6 | 1 | 23 21 2 330 083 | |||
| 6 | Bush | 1 | 23 21 2 330 082 | |||
| 7 | Gear wheel 1st gear | 1 | 23 21 1 451 079 | |||
| 8 | O-ring 1st gear | 1 | 23 21 2 345 221 | |||
| 9 | Spacer 25x35x2,0 | 1 | 23 21 1 451 144 | |||
| 9 | Spacer 25x35x1,9 | 1 | 23 21 1 451 902 | |||
| 9 | Spacer 25x35x1,8 | 1 | 23 21 1 451 903 | |||
| 9 | Spacer 25x35x1,7 | 1 | 23 21 1 451 904 | |||
| 9 | Spacer 25x35x1,6 | 1 | 23 21 1 451 905 | |||
| 10 | Gear wheel 4th gear | 1 | 23 21 2 345 520 | |||
| 11 | Lock ring 31x1,5 | 2 | 23 21 1 451 154 | |||
| 12 | Flat washer | 2 | 23 21 1 451 072 | |||
| 13 | O-ring 2nd gear | 1 | 23 21 2 345 222 | |||
| 14 | Needle bearing 28x33x13 | 1 | 23 00 2 325 180 | |||
| 15 | Gear wheel 2nd gear | 1 | 23 21 2 345 518 | |||
| 16 | Gear wheel 3rd gear | 1 | 23 21 2 345 519 | |||
| 17 | Bush | 1 | 23 21 1 451 074 | |||
| 18 | Gear wheel 5th gear M94 | 1 | 23 21 2 345 506 | |||
| 19 | Grooved ball bearing, clean bearing 25x52x15 | 1 | 23 00 2 325 248 |

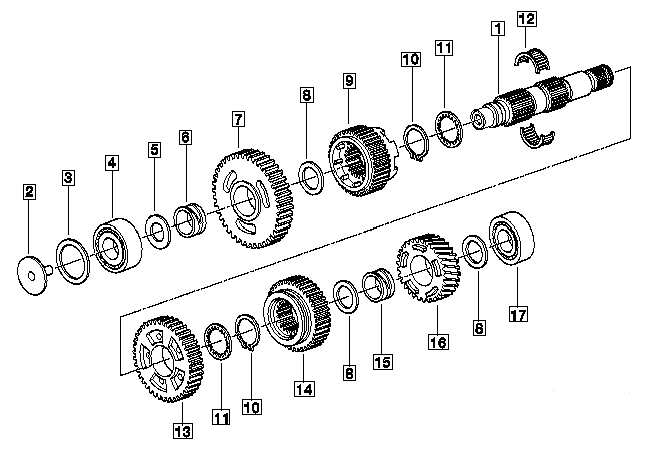

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Output shaft M97 | 1 | 23 21 1 340 349 | |||
| 2 | Oil guide | 1 | 23 11 1 340 426 | |||
| 3 | Spacer ring 37x47x0,30 | 1 | 23 11 1 451 138 | |||
| 3 | Spacer ring 37x47x0,35 | 1 | 23 11 1 341 431 | |||
| 3 | Spacer ring 37x47x0,40 | 1 | 23 11 1 451 139 | |||
| 3 | Spacer ring 37x47x0,45 | 1 | 23 11 1 341 432 | |||
| 3 | Spacer ring 37x47x0,50 | 1 | 23 11 1 451 140 | |||
| 3 | Spacer ring 37x47x0,55 | 1 | 23 11 1 341 433 | |||
| 4 | Grooved ball bearing, clean bearing 20x47x14 | 1 | 23 00 2 325 251 | |||
| 5 | Support 20x35x1,6 | 1 | 23 21 2 330 083 | |||
| 6 | Bush | 1 | 23 21 1 451 078 | |||
| 7 | Gear wheel first gear | 1 | 23 21 1 451 079 | |||
| 8 | Spacer ring 25x35x2,0 | 1 | 23 21 1 451 144 | |||
| 8 | Spacer ring 25x35x1,9 | 1 | 23 21 1 451 902 | |||
| 8 | Spacer ring 25x35x1,8 | 1 | 23 21 1 451 903 | |||
| 8 | Spacer ring 25x35x1,7 | 1 | 23 21 1 451 904 | |||
| 8 | Spacer ring 25x35x1,6 | 1 | 23 21 1 451 905 | |||
| 9 | Shift gear wheel 4th gear | 1 | 23 22 2 325 484 | |||
| 10 | Lock ring 31x1,5 | 2 | 23 21 1 451 154 | |||
| 11 | Flat washer | 2 | 23 21 1 451 072 | |||
| 12 | Needle cage | 1 | 23 31 1 451 898 | |||
| 13 | Shift gear wheel 2nd gear | 1 | 23 22 2 325 523 | |||
| 14 | Gear wheel 3rd gear | 1 | 23 21 1 451 073 | 1 | ||
| 15 | Bush | 1 | 23 21 1 451 074 | |||
| 16 | Shift gear 5th gear | 1 | 23 22 2 325 524 | |||
| 17 | Grooved ball bearing, clean bearing 25x52x15 | 1 | 23 00 2 325 248 |

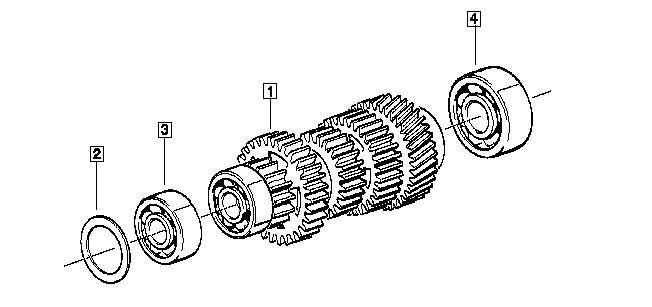

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Intermediate shaft M94 | 1 | 23 21 2 330 094 | |||
| 1 | Intermediate shaft clean bearing | 1 | 23 00 2 325 236 | |||
| 1 | Intermediate shaft M97 | 1 | 23 20 2 325 479 | |||
| 2 | Spacer ring 37x47x0,30 | 1 | 23 11 1 451 138 | |||
| 2 | Spacer ring 37x47x0,35 | 1 | 23 11 1 341 431 | |||
| 2 | Spacer ring 37x47x0,40 | 1 | 23 11 1 451 139 | |||
| 2 | Spacer ring 37x47x0,45 | 1 | 23 11 1 341 432 | |||
| 2 | Spacer ring 37x47x0,50 | 1 | 23 11 1 451 140 | |||
| 2 | Spacer ring 37x47x0,55 | 1 | 23 11 1 341 433 | |||
| 3 | Grooved ball bearing 17x47x14 | 1 | 23 12 1 451 163 | 1 | ||
| 3 | Grooved ball bearing, clean bearing 17x47x14 | 1 | 23 00 2 325 238 | |||
| 4 | Cylindrical roller bearing, radial 17x47x14 | 1 | 23 12 1 340 428 | |||
| 4 | Grooved ball bearing, clean bearing 17x59x20 | 1 | 23 00 2 325 239 |

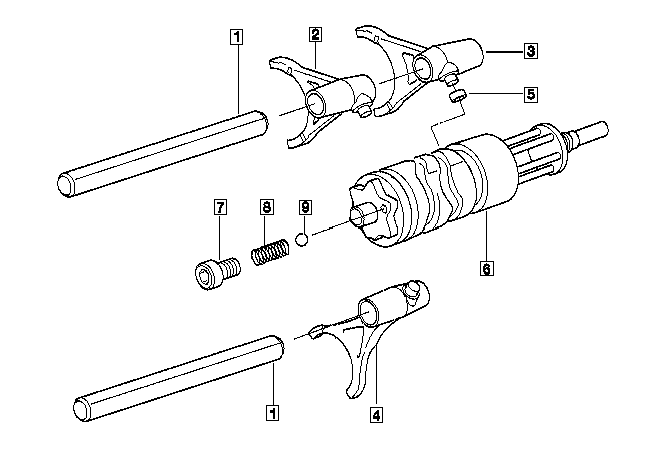

| Description | Qty | Inst | Exp | Partnumber | R | |
| 1 | Axle | 2 | 23 31 1 451 113 | 1 | ||
| 2 | Shift fork 1st and 2nd gear | 1 | 23 31 1 340 388 | |||
| 3 | Shift fork 5th gear | 1 | 23 31 1 340 390 | |||
| 4 | Shift fork 3rd and 4th gear | 1 | 23 31 1 340 389 | 1 | ||
| 5 | Roller | 3 | 23 31 1 451 114 | 1 | ||
| 6 | Shift drum | 1 | 23 31 1 340 356 | |||
| 7 | Fillister head | 1 | 23 31 1 451 119 | |||
| 8 | Coil spring | 1 | 23 31 1 451 118 | |||
| 9 | Ball 6mm IV | 1 | 07 11 9 986 269 |

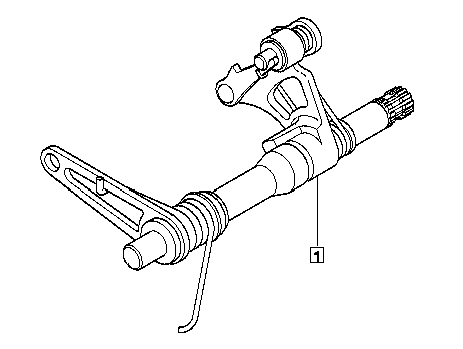

| Description | Qty | Inst | Exp | Partnumber | |
| 1 | Shifting shaft | 1 | 23 31 1 340 372 |

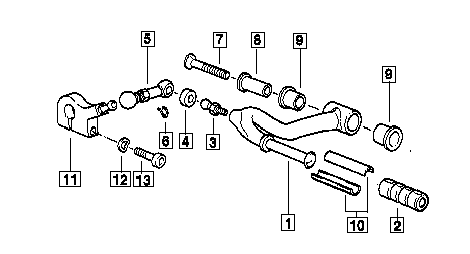

| Description | Qty | Inst | Exp | Partnumber | AT | |
| 1 | Shift lever | 1 | 23 41 1 341 628 | |||
| 2 | Bushing | 1 | 23 41 1 341 592 | |||
| 3 | Ball pin | 1 | 23 41 1 461 432 | |||
| 4 | Bush | 1 | 35 41 1 150 432 | |||
| 5 | Selector rod | 1 | 23 41 1 341 676 | |||
| 6 | Safety clip S10 | 1 | 07 11 9 987 611 | |||
| 7 | Countersunk head screw | 1 | 46 52 1 454 158 | |||
| 8 | Sleeve | 1 | 23 41 1 340 413 | |||
| 9 | Bush | 2 | 23 41 1 341 344 | |||
| 10 | Bearing shell | 2 | 23 41 1 341 593 | |||
| 11 | Shift lever | 1 | 23 41 1 341 675 | |||
| 12 | Wave washer B6 | 1 | 07 11 9 932 099 | |||
| 13 | Fillister head M6x30 | 1 | 46 63 2 322 361 | AE | ||
| 13 | Fillister head M6x30-8.8-ZNS | 1 | 07 11 9 900 847 |
