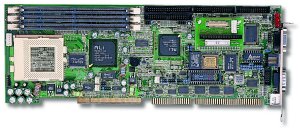

Features Full size PICMG Bus CPU card Support Intel Pentium and AMD K6 CPU up to 550MHz or more Up to 768MB Memory, 3 SDRAM sockets CPU Chipset:Ali M1541/M1543 CT 65555 Controller support both CRT and LCD One 10/100Mbps Ethernet Support two IDE HDDs Support one Floppy disks Support one EPP/ECP Parallel Port Support two 16C550 RS-232C Ports Watch-dog Timer LM78 Hardware Monitoring System Support USB/IrDA function Monitoring and Alarm - The JUKI-760E includes a multitude of monitoring and alarm functions to protect your board from high temperatures or over voltage exposure. Watchdog Timer - A 6-level Watchdog Timer can invoke an NMI or RESET the CPU when your application loses control over the system.	Description The JUKI-760E is a Socket 7 single board computer based on Intel's BX chipset. This card accommodates Intel Pentium and AMD K6 CPU and allows processor speed of up to 550 MHz or more. Together with a high speed Ethernet interface, and the AGP/PCI Accelerator, this board is very well suited for cost effective high end workstations for application such as CAD/CAM, Image processing etc. AGP/PCI VGA I/F - CT 65555 display chipset consists of high integration, super performance, and feature-rich 3D/2D graphics & video accelerators, it supports up to 1280 x 1024 256 colors. 10/100 Mbps Networking - Realtek 8139 PCI 10BASE-T/100BASE-TX Ethernet interfaces are included for high speed networking. Ultra DMA HDD support - Ultra DMA doubles the current burst data transfer rate to 33 megabytes (MB) per second. Ultra DMA "widens" the path to the hard drive by transferring twice as much data per clock cycle. DiskOnChip - The JUKI-760E socket accommodates a DiskOnChip, a new generation of high performance single-chip Flash Disks up to 144 MB.
Model Number Model Number Description JUKI-760E All-in-one Socket 7 (Pentium / K6) CPU card with VGA & Ethernet
Specifications JUKI-760E CPU Pentium, Pentium MMX, K6, K6-2, K6-3 CPU Socket Socket 7 RAM Up to 768MB (Three SDRAM memory) Chipset Ali M1541/M1543 BIOS Award BIOS Multi-I/O Chip Two 16C550 RS-232 ports One EPP/ECP parallel port One Floppy I/F Two IDE I/F Ethernet One Realtek 8139 chipset 10/100Mbps RJ-45 connector Display Controller CT 65555 chipset Support CRT and LCD Resolutiion up to 1280 x 1024 colors Flash Disk Support DiskOnChipTMflash disk chip Watch-Dog Timer Can be set by 1-255 seconds period. RESET or NMI was generated when CPU did not periodically trigger the timer Interface PICMG Bus (ISA Bus and PCI Bus) Keyboard I/F PS/2 keyboard connector Mouse I/F PS/2 mouse I/F Power Supply +5V/12A, +12V/170mA, -12V/20mA Operating Temperature +0°C to +60°C Operating Humidity 0 to 90% non-condensing
